Lego Technic "Steam" Engine
by Per Arne Rikvold
Building Instructions by C S Soh
Assembly of complete engine

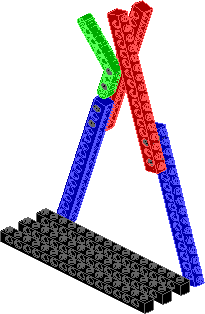

1 Back A-frame
2 A-frame base

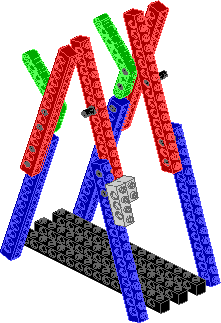

3 Front A-frame

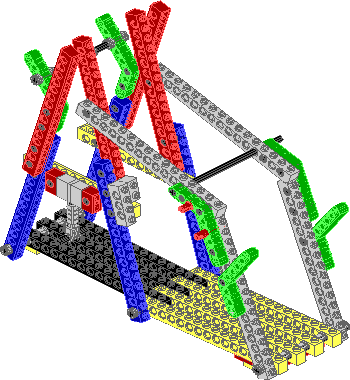

4 Trapezoid frame
Note
The two pins for mounting the gearbox are indicated in red for clarity. They should of course be black.

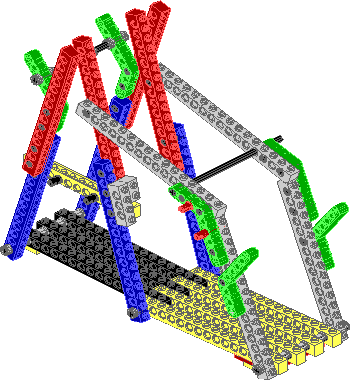

5 Base plates and crosspiece
6 Crosspiece and valve
7 Pendulum and walking beam

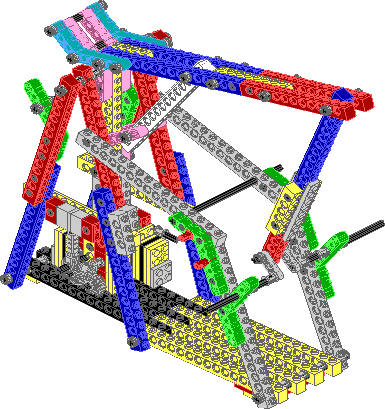

8 Connecting rod and crank

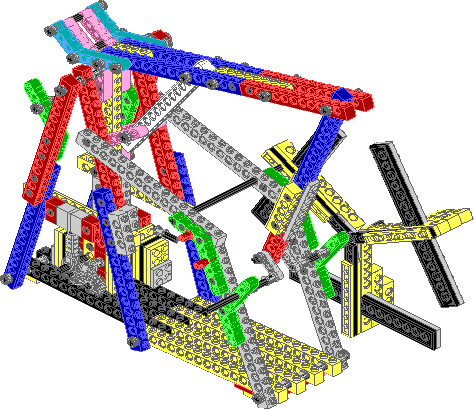

9 Flywheel

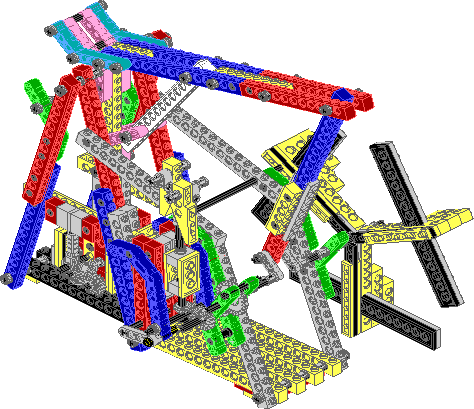

10 Gearbox and governor

LDraw files
